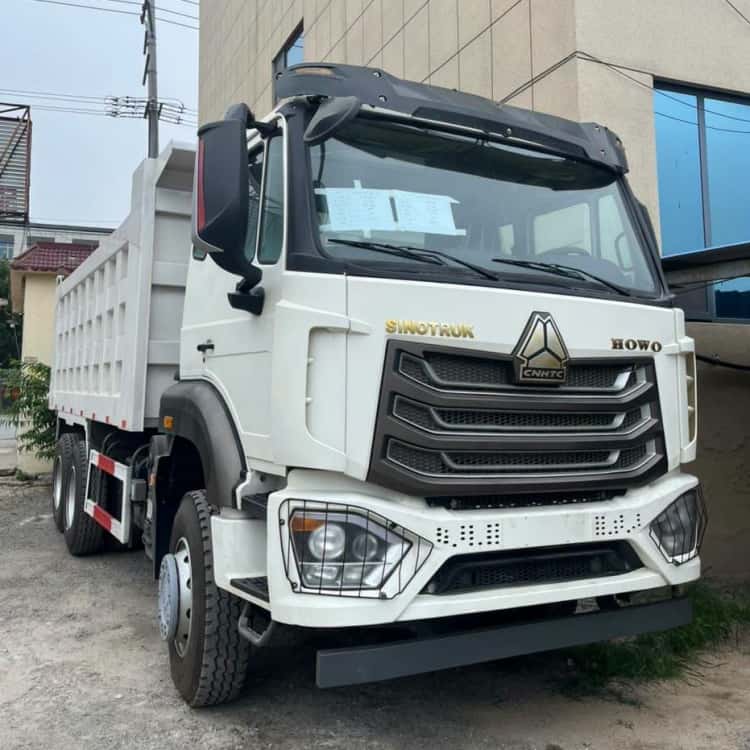

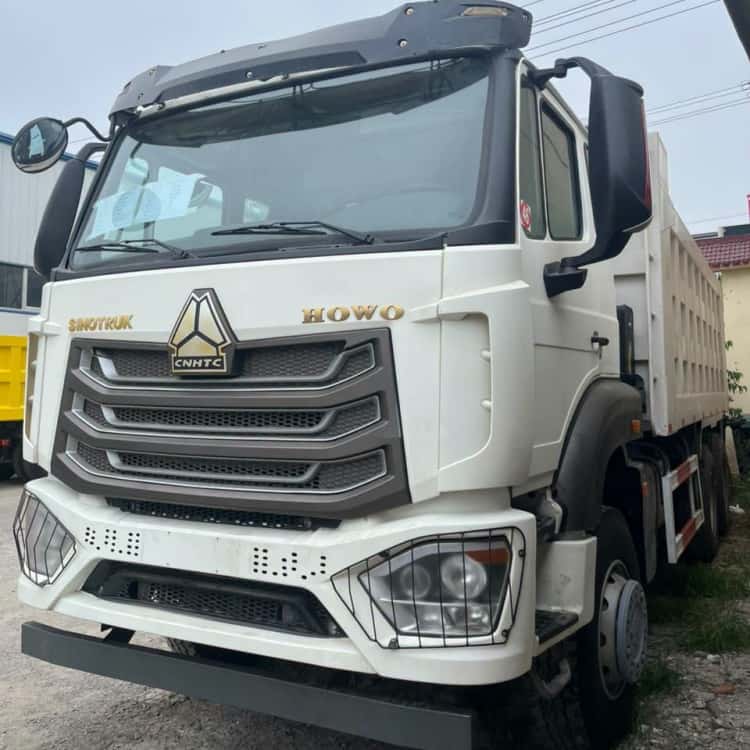

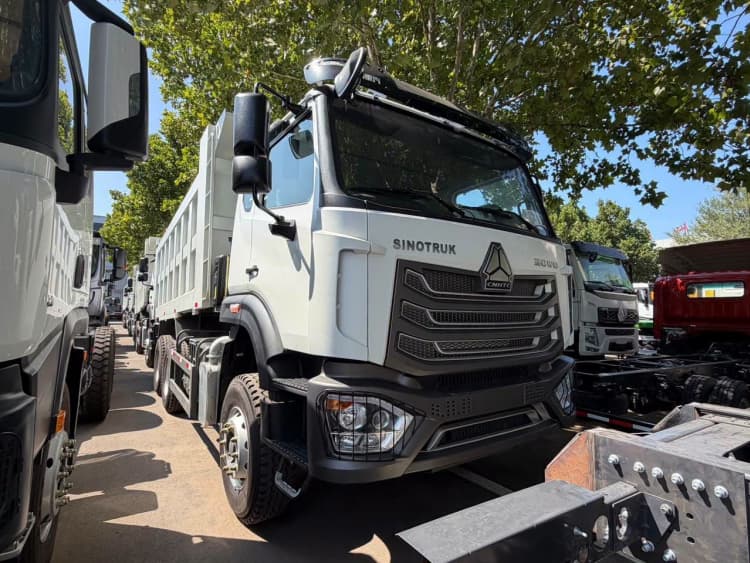

Reman Howo NX 6×4 Tipper Truck

China Howo Reman Truck for Sale Description

• REMAN ROAD reman Howo NX 6×4 tipper truck implements full asset‑life reset based on tipper‑adapted heavy‑vehicle reman standards.
• Full‑vehicle disassembly enables detailed inspection for lifting hydraulic components, cargo‑box welds, suspension assemblies and main frame; components with impact‑induced fatigue, abrasion or deformation get repaired or replaced.

• Finished reman tipper 6×4 pass hydraulic cycle testing and real‑site simulation validation to deliver near‑new dumping performance for quarry, mine and large‑scale infrastructure fleets pursuing cost control and circular‑economy transformation.

Specification Table

• Model: Reman Howo NX 6×4 Tipper Truck
• Drive: 6×4 tandem rear‑axle drive, retain original OEM load‑bearing chassis architecture
• Engine: Remanufactured SINOTRUK heavy‑duty diesel engine, full teardown & bench calibration
• Transmission: Remanufactured gearbox, friction components renewed, shift performance verified
• Chassis Frame: NDT fatigue inspection, micro‑crack & deformation screening, no unauthorised modification
• Suspension: Renewed bushings, shock absorbers & fatigued fasteners

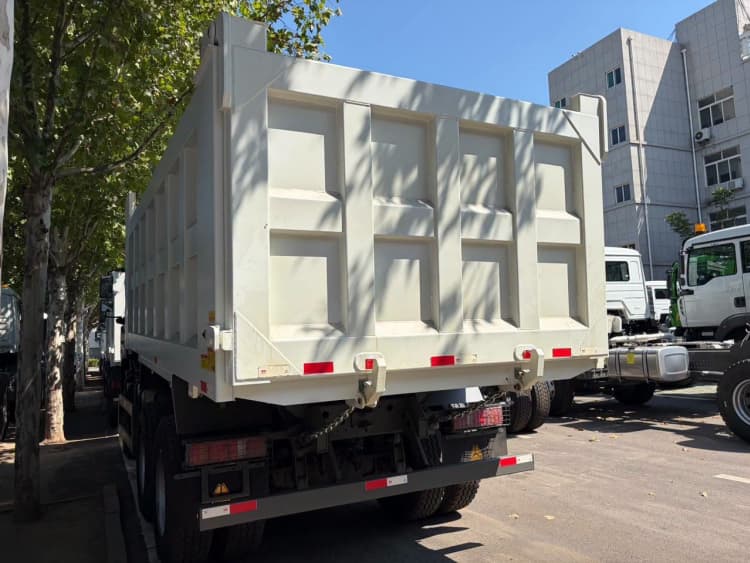

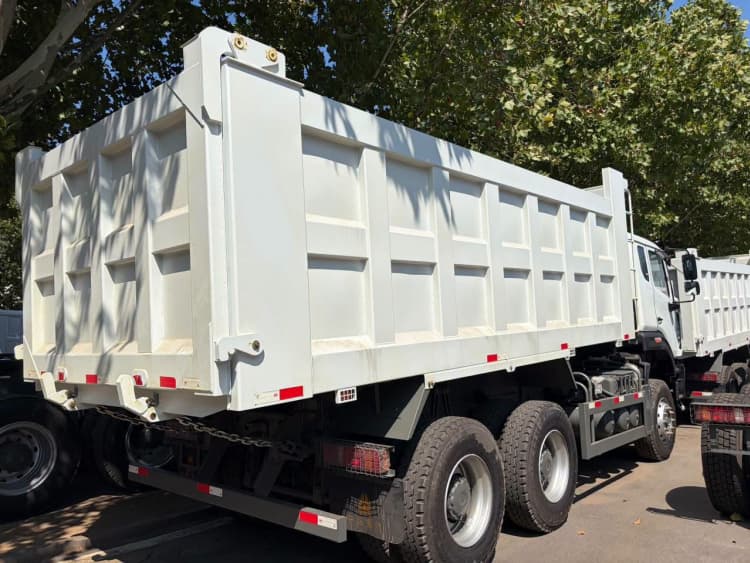

• Cargo Box: Deformation corrected, weld seams inspected, worn plates renewed
• Hydraulic System: Reman multi‑stage cylinder & valve group, sealing renewed, pressure‑holding leak test
• Tires: 12.00R20 heavy-duty off-road tires, wheel hubs serviced and bearings renewed
• Brake System: Reman air brake with ABS, all sealing elements replaced
• Electrical System: Wiring harness & aged sensors inspected/renewed

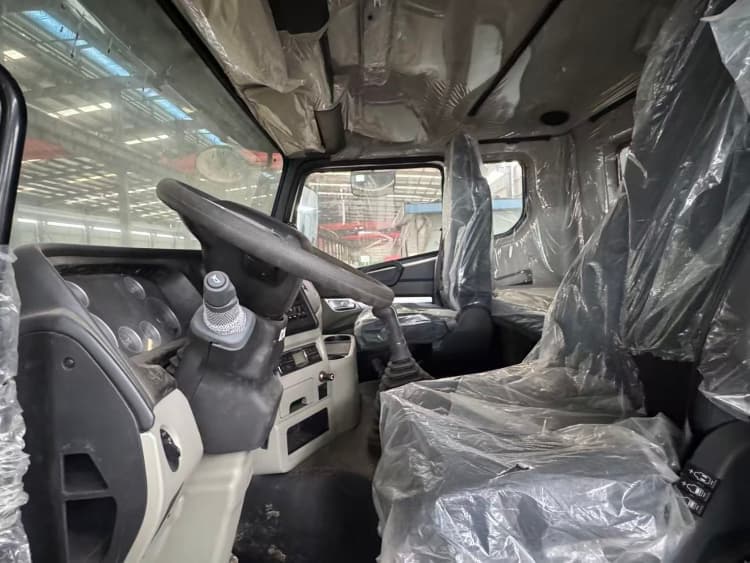

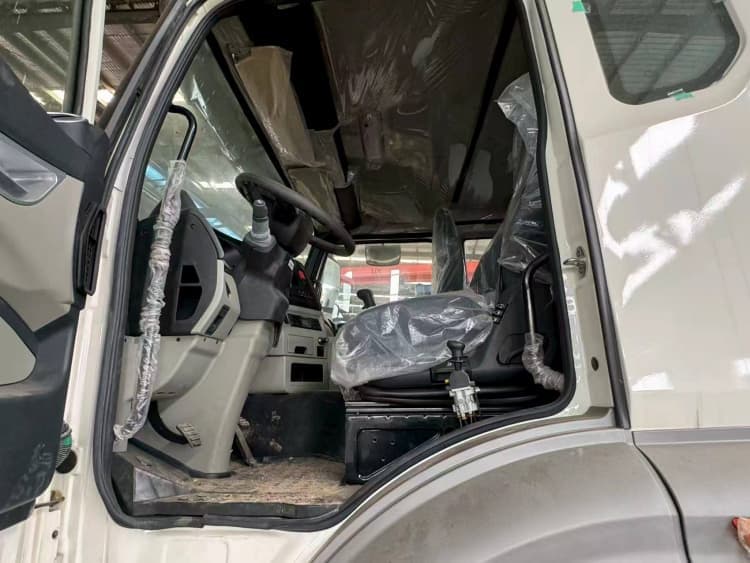

• Cabin: HOWO‑NX standard construction‑grade cabin, structural inspection and full reman refurbishment

China Howo Remanufacturing Process

• Asset Screening: Screen used tipper chassis, reject units with irreparable structural damage
• Full Disassembly: Dismantle vehicle into separate components, isolate powertrain, hydraulics and cargo box
• Clean & Inspect: Clean assemblies; perform dimension check and frame non‑destructive fatigue detection
• Part Classification: Refurbish qualified reusable parts; mandatorily replace fatigued / worn‑out components
• Tipper‑Specific Reman: Rectify cargo‑box deformation and welds; rebuild hydraulic system and run leak‑pressure test
• Reassemble & Calibrate: Re‑assemble per OEM requirements, restore engine, transmission and hydraulic factory parameters
• Multi‑Scenario Validation: Execute powertrain test, full‑load lifting cycles and whole‑vehicle functional inspection
• Final Acceptance: Complete finishing, archive full test data and generate traceable reman records

Tipper‑Unique Damage Modes Under Construction‑Site Cyclic Load

Dump trucks work under impact, vibration and heavy cyclic payload; their damage characteristics are very different from highway tractors.

• Frame and sub‑frame suffer repeated impact stress, easy to produce invisible micro‑cracks which cannot be found by simple visual inspection.
• Cargo‑box bottom and side plates bear continuous abrasive wear from ores and building rubble, local thinning and deformation occur gradually.
• Hydraulic lifting system bears alternating pressure shock; sealing components age fast under frequent lifting‑lowering cycles.
• Suspension assemblies endure uneven impact from rugged site roads; spring fatigue and bushing failure happen far faster than highway‑only vehicles.
• Hinge and connection points between cargo box and chassis accumulate fatigue under long‑term vibration, bringing hidden loosening risk.

Core Technical Points of Hydraulic System Reman

Hydraulic lifting system is the most failure‑prone assembly for tippers; reman must go beyond simple component repair.

• Complete disassembly of lifting cylinder, multi‑way valve, oil pipeline and connectors instead of only repairing leaky positions.
• Mandatory renewal of all sealing sets regardless of whether leakage symptom appears.
• Measure cylinder inner wall and piston‑rod wear; reject reuse when exceeding OEM tolerance limit.
• Execute static pressure‑holding test and dozens of cycles of full‑payload lifting simulation test.
• Keep original factory pressure setting; prohibit unauthorised over‑pressure adjustment for faster lifting speed.

RFQ

• Q: What special reman steps are required for the lifting hydraulic system of a reman tipper 6×4?
  A: The whole hydraulic circuit is fully disassembled; cylinder pistons, sealing sets and distribution valve components are inspected. All aging seals are mandatorily replaced, then repeated full‑load lifting and pressure‑holding leak tests are performed to eliminate hidden leakage risks.
• Q: Can we simply reuse the original hydraulic cylinder if no obvious oil leakage is seen?
  A: Visually leak‑free appearance cannot exclude internal piston‑rod wear. In formal China Howo reman, cylinders must be disassembled, measured and inspected; components exceeding wear limit need renewal even without external oil seepage.
• Q: What risks will low‑quality hydraulic reman bring for site tipper operation?
  A: Degraded sealing may cause sudden lifting failure, slow descent or oil blow‑out under full payload, leading to work stoppage at construction sites and even safety hazards during cargo‑unloading procedures.
• Q: Will remanufacturing change the original lifting speed and pressure parameters of the tipper hydraulic system?
  A: China Howo reman strictly restores factory‑set pressure and lifting‑cycle parameters. No arbitrary adjustment shall be done; over‑pressure tuning to pursue faster lifting is forbidden in standard reman workflows.
• Q: How do you judge whether a reman hydraulic cylinder should be repaired or directly replaced?
  A: Judgement depends on piston‑rod surface abrasion depth, inner‑cylinder wall wear and deformation. Once wear exceeds OEM tolerance range, direct replacement is adopted instead of simple surface polishing repair.
• Q: After reman, what kind of test will the tipper hydraulic system go through before delivery?
  A: It includes static pressure‑holding leak test, dozens of cycles of full‑payload lifting‑lowering test, and vehicle‑mounted real‑operation verification to simulate actual site working conditions.
